Mini-Circuits’ Waveguide Bandpass Filter Passes 81 to 86 GHz

Mini-Circuits and Virginia Diodes have teamed together to offer a new series of high-performance, high-fidelity waveguide bandpass filters for millimeter wave applications.  WVBP-series filters are available in various passbands spanning 27 to 86 GHz, and are offered with standard WR waveguide interfaces.  Build with precise machine tolerances and outstanding quality plating, WVBP-series filters provide low insertion loss in the passband, outstanding return loss, and high stopband rejection with fast roll-off.

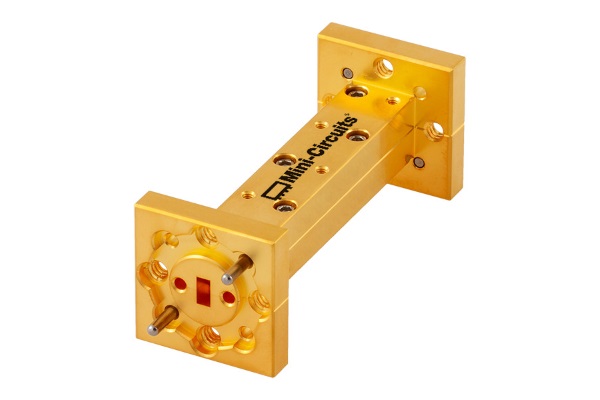

Model WVBP-833-WR12+ has a passband of 81 to 86 GHz.  It provides passband insertion loss of 0.5 dB, 26 dB typical return loss, lower stopband rejection of 90 dB and upper stopband rejection of 49 dB.  This model features a WR12 wave guide interface and measures 2.0 inches in length
