Mini-Circuits’ MMIC Directional Coupler Covers 6 to 26.5 GHz

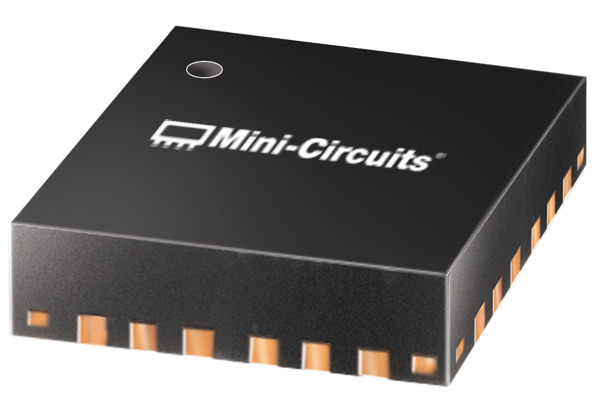

Mini-Circuits’ EDC10-273+ is a MMIC directional coupler with a 10 dB coupling ratio and a wide operating frequency range from 6 to 26.5 GHz.  This model provides ±1.5 dB coupling flatness across its full frequency range, 1.5 dB mainline loss, 16 dB typical return loss, and 14 dB directivity.  The coupler can handle up to +19 dBm RF input power (5 minute max.) and comes housed in a tiny 4x4mm QFN package.  Manufactured using GaAs MMIC technology, the coupler achieves outstanding repeatability of performance, making it suitable for volume production





לפרטים נוספים:

 MCDI | Tel – 077-540-6075 | Fax – 153-77-540-6051 | E-mail – office@mcdi-ltd.com
