Mini-Circuits’ Right Angle N-Female to N-Male Adapter, DC to 6 GHz

image_pdfimage_print

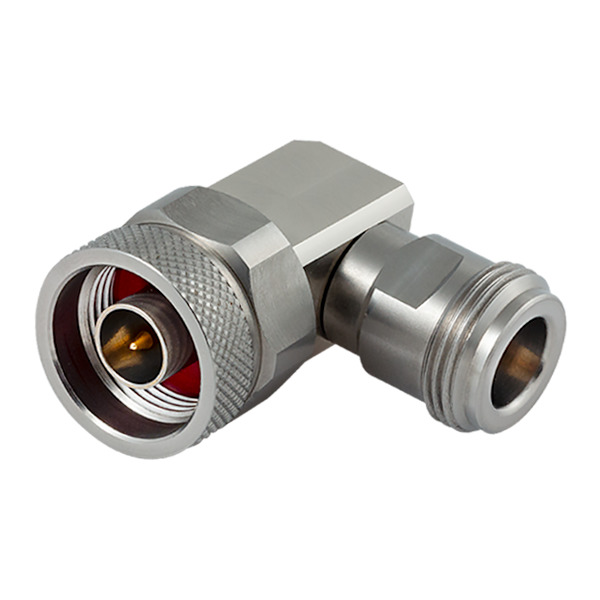

Mini-Circuits’ NF-NMR50+ is a right angle N-Female to N-Male adapter supporting applications from DC to 6 GHz.  This model is ideal for interconnection of RF cables, equipment, and rack-mounted systems where right angle connections are needed.  The adapter provides low insertion loss of 0.07 dB with flat response across its full bandwidth, and excellent VSWR of 1.02:1.  The unit features a passivated stainless steel body (1.0 x 0.98 x 1.4”) and gold-plated beryllium copper center connector

לפרטים נוספים:

 MCDI | Tel – 077-540-6075 | Fax – 153-77-540-6051 | E-mail – office@mcdi-ltd.com
