Mini-Circuits’ Tiny High-Rejection LTCC Low Pass Filter, DC to 2850 MHz

image_pdfimage_print

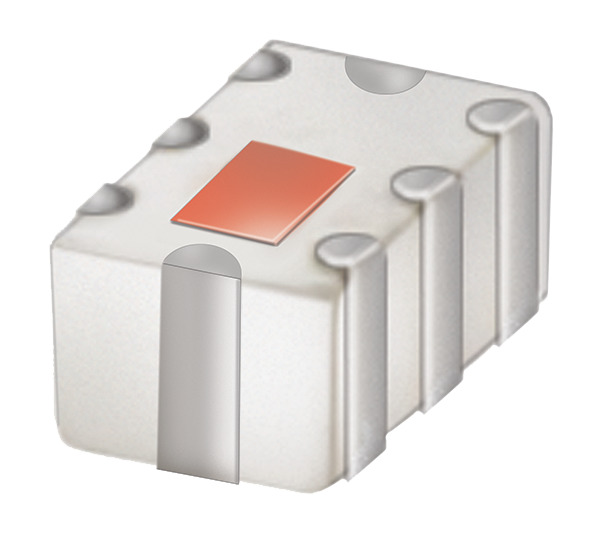

Mini-Circuits’ LFCG-2850+ is an LTCC low-pass filter with a passband from DC to 2850 MHz.  This model provides 0.9 dB typical passband insertion loss and high stopband rejection of 45 dB typ. due to a strategically constructed layout with minimal interaction between components.  The filter is capable of handling up to 6.5W RF input power and provides a wide operating temperature range from -40°C to 85°C.  Housed in a tiny 0805 ceramic form factor with wraparound terminations, the LFCG-2850+ is ideal for dense PCB layouts with minimal performance variation due to parasitics



לפרטים נוספים:

 MCDI | Tel – 077-540-6075 | Fax – 153-77-540-6051 | E-mail – office@mcdi-ltd.com
