Mini-Circuits’ Dual Channel 8-Way Splitter/Combiner, 1 to 100 MHz and 2450 to 2700 MHz

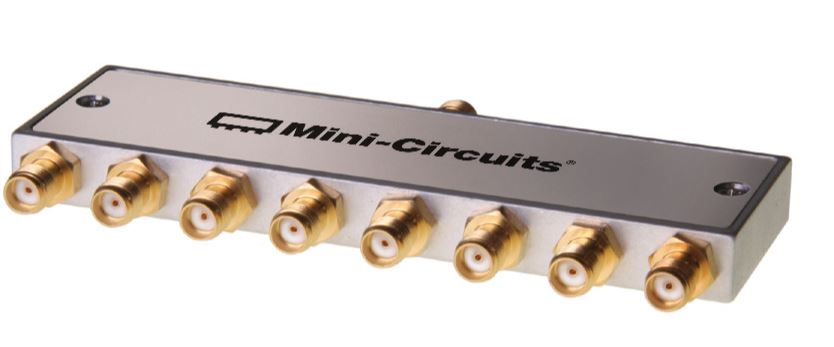

Mini-Circuits’ ZC8SC272-12DL+ is an 8-way, 0° dual channel splitter/combiner with a low pass channel from 1 to 100 MHz and a high pass channel from 2450 to 2700 MHz.  This model is ideal for distributing signals where S-Band IF and a reference signal are fed onto the same line.  It provides good input/output matching VSWR of 1.2:1, low insertion loss (0.5 dB low channel; 2.0 dB high channel), and 22 dB isolation between channels or better.  The unit comes housed in a rugged aluminum alloy case (4.00 x 1.25 x 0.50”) with SMA connectors
