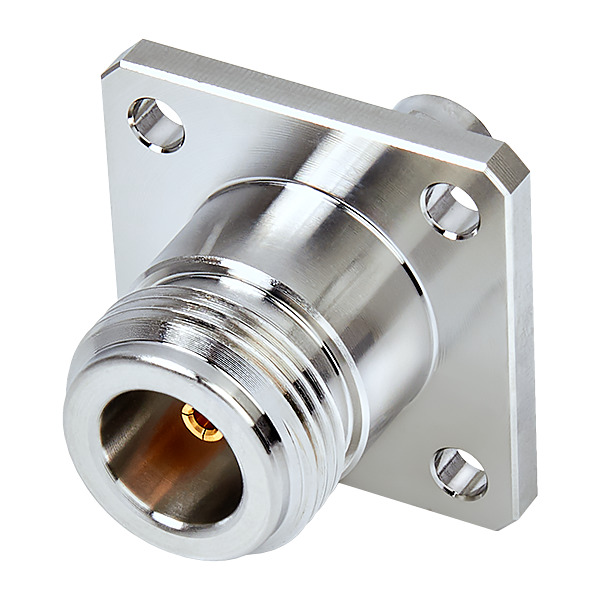

Mini-Circuits’ N-Female to SMA-Male Bulkhead Adapter, DC to 18 GHz

Mini-Circuits’ NFFL-SM50+ is an N-Female to SMA-Male bulkhead adapter supporting a wide range of connectorized applications from DC to 18 GHz.  This model provides 0.14 dB insertion loss and 1.17:1 VSWR with flat response across its full frequency range.  The unit features rugged, tri-metal plated brass construction with gold-plated beryllium copper center conductor and a built-in bulkhead flange, ideal for panel mounting in contained equipment housings.
