Mini-Circuits’ Tiny LTCC 3-Way Splitter/Combiner, 900 to 1600 MHz

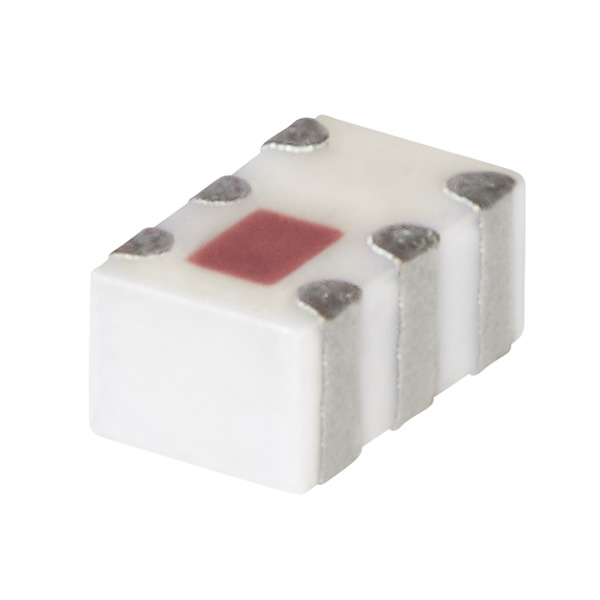

Mini-Circuits’ SCG-3-162+ is a Low Temperature Co-Fired Ceramic (LTCC) 3-way, 0° splitter/combiner with a frequency range from 900 to 1600 MHz.  This model is capable of handling up to 2W as a splitter and provides 1.2 dB insertion loss (above 4.8 dB theoretical loss), 18 dB isolation, 0.2 dB amplitude unbalance, and 5° phase unbalance.  The unit is fabricated into a tiny ceramic monolith measuring only 0.08 x 0.05 x 0.03” with wraparound terminations for excellent solderability.

לפרטים נוספים:

 MCDI | Tel – 077-540-6075 | Fax – 153-77-540-6051 | E-mail – office@mcdi-ltd.com
