Mini-Circuits’ Coaxial Highpass Filter Screens 18 to 40 GHz

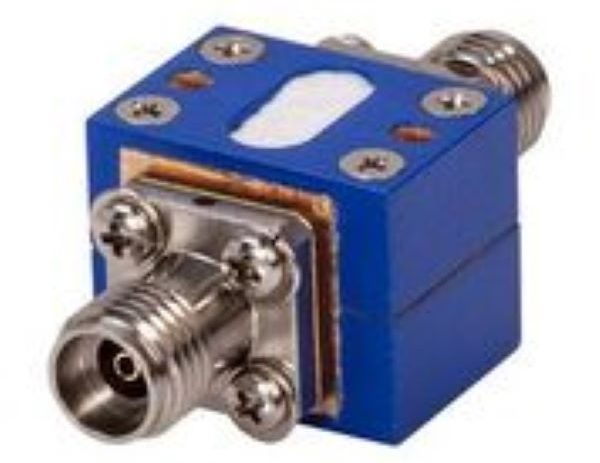

Mini-Circuits’ model ZHSS-K18G+ is a wideband highpass filter based on suspended substrate stripline technology and supplied in a compact housing with female 2.92-mm coaxial connectors. With a stopband from DC to 13.6 GHz and a passband from 18.0 to 40.0 GHz, the 50-Ω highpass filter is well suited for 5G, satcom, and test applications. Passband insertion loss is typically 1.5 dB from 18.0 to 40.0 GHz while passband VSWR is typically 2.0:1 across the same frequency range. Stopband rejection is at least 60 dB and typically 80 dB from DC to 11.7 GHz and at least 20 dB and typically 40 dB from 11.7 to 13.6 GHz. The RoHS-compliant filter measures 1.30 × 0.43 × 0.60 in. (33.0 × 10.9 × 15.2 mm) from connector to connector. It is designed for operating temperatures from -40 to +85°C and can handle as much as 2 W (+33 dBm) RF input power.
