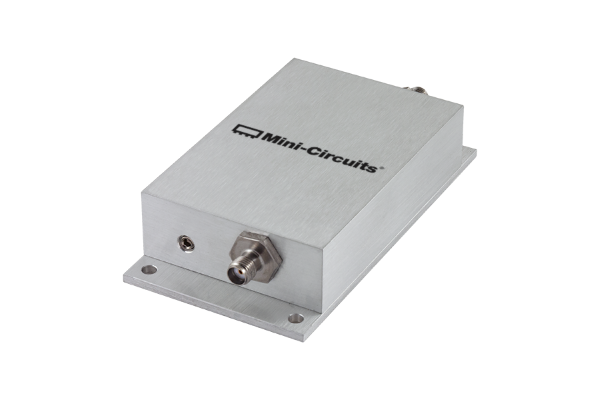

Mini-Circuits’ ZHL-2150+ is a Class A amplifier supporting L-Band applications from 950 to 2150 MHz including communications, radar, and more. This model provides 30 dB gain with ±0.5 dB flatness, +11 dBm output power at 1 dB compression, +25 dBm OIP3, and 3.5 dB noise figure. Along with DC current, the amplifier allows a 10 MHz reference signal to pass through in either direction. It operates on a single +12V to +18V supply applied directly through the RF input or output ports, minimizing the need for extra cables. The amplifier comes in a rugged, aluminum-alloy housing measuring 3.0 x 2.0 x 0.8” with SMA connectors and built-in bracket for mounting.
