Mini-Circuits’ Ultra-Wideband 2-Way 0° Splitter/Combiner Covers 0.5 to 40 GHz

Mini-Circuits’ Ultra-Wideband 2-Way 0° Splitter/Combiner Covers 0.5 to 40 GHz

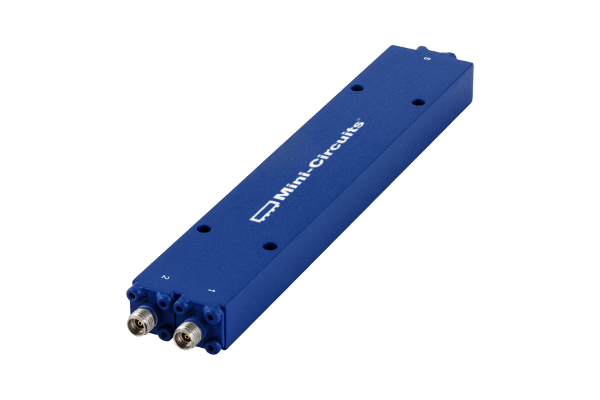

Mini-Circuits’ ZC2PD-K5R44W+ is an ultra-wideband 2-way 0° splitter/combiner providing continuous coverage from 0.5 to 40 GHz, supporting a wide range of applications including 5G, Ku-Band, K-Band, instrumentation and many more.  This model provides 20W RF power handling as a splitter with DC passing up to 460mA, 1.9 dB insertion loss, 1.15:1 VSWR, 35 dB isolation, 0.1 dB amplitude unbalance, and 1° phase unbalance.  The unit comes housed in a rugged aluminum alloy case (5.87 x 1.04 x 0.5”) with 2.92mm-Female connectors.

לפרטים נוספים: “MCDI”

ט: 077-540-6075

פ: 153-77-540-6051

office@mcdi-ltd.com

www.minicircuits.com
