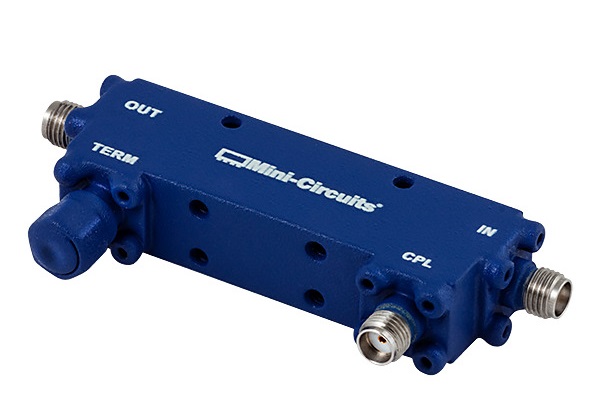

Mini-Circuits’ model ZCDC13-K0244+ is an extremely wideband, DC-passing directional coupler with operating frequency range of 2 to 40 GHz. This model provides 13 dB coupling with flatness of ±0.6 dB across the frequency range, and typical directivity of 16 dB through 40 GHz. It can handle signal power levels up to 20W with low mainline loss of typically 0.8 dB through 18 GHz and 1.5 dB through 40 GHz. The input, output, and coupled-port return losses are typically 14.0 dB through 18 GHz and 11.7 dB through 40 GHz. The broadband, RoHS-compliant directional coupler is well suited for many applications in 5G, fixed-satellite, mobile-communications systems, and more. It measures 2.25 × 0.7 × 0.50 in. (57.15 × 17.78 × 12.70 mm) with 2.92-mm female coaxial connectors and can handle operating temperatures from -55 to +100°C
