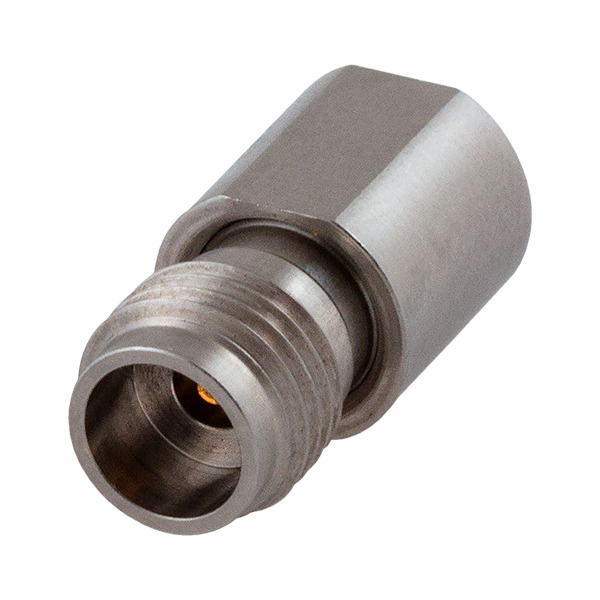

Mini-Circuits’ model ANNEF-50V+ is an ultra-wideband coaxial termination covering the DC to 50 GHz range. It handles RF/microwave signal power levels to 1W (+30 dBm) and exhibits typical return loss of 20 dB through 50 GHz. Designed for long operating lifetime, the durable 50Ω termination is supplied in a passivated stainless-steel case. Its handy female 2.4-mm connector eliminates the need for additional coaxial adapters at different frequency bands, since it mates with 1.85-mm, 3.5-mm, 2.92-mm, and SMA coaxial connectors. The RoHS-compliant component is 0.61 in. long with diameter of 0.31 in. It is designed for operating temperatures from -55 to +100°C
