Mini-Circuits’ Surface Mount Bidirectional Coupler Handles 140W from 2 to 6 GHz

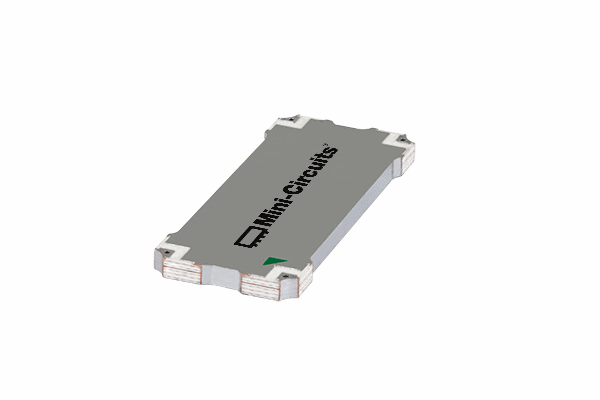

Mini-Circuits’ model BDCH-20-63A+ is a stripline-based surface mount bidirectional coupler with power-handling capability to 140W, covering applications from 2 to 6 GHz. This model provides 18 dB coupling across its full frequency range, with coupling flatness of ±0.5 dB, 29 dB directivity, and 26 dB return loss. The full-band insertion loss is typically only 0.15 dB.  The coupler is supplied as an open printed laminate measuring 1.00 × 0.35 × 0.067 in. (26.40 × 8.89 × 1.70 mm) with wrap-around terminations to simplify solder connections to your PCB. It is designed for operating temperatures from -55 to +105°C
