Mini-Circuits’ Coaxial Bidirectional Coupler Handles 250W from 380 to 3700 MHz

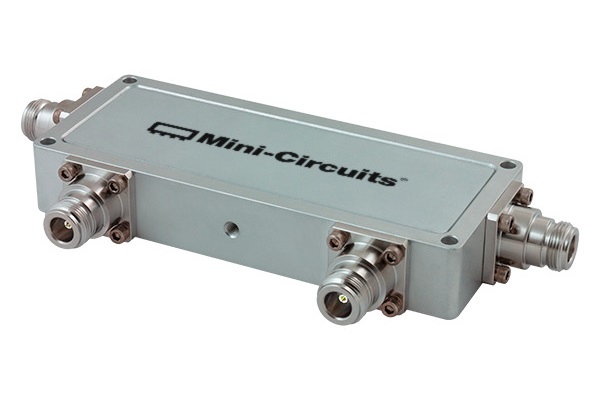

Mini-Circuits’ model ZGBDC10-372HP+ is a coaxial, DC-passing bidirectional coupler capable of handling CW power levels up to 250W from 380 to 3700 MHz. This model provides 10 dB nominal coupling with ±0.2 dB flatness from 600 to 3700 MHz. It provides low mainline loss of 0.18 dB, 20 dB typical directivity, and 24 dB return loss. Based on suspended-substrate technology, the 50Ω bidirectional coupler can pass as much as 3A current from input to output. The coupler features a rugged, sealed housing measuring 5.93 × 2.40 × 1.00 in. (150.62 × 60.96 × 25.40 mm) with Type N connectors, making it ideal for use in field applications or in the lab
