Mini-Circuits’ Suspended Substrate Band Pass Filter Passes 7825 to 8125 GHz

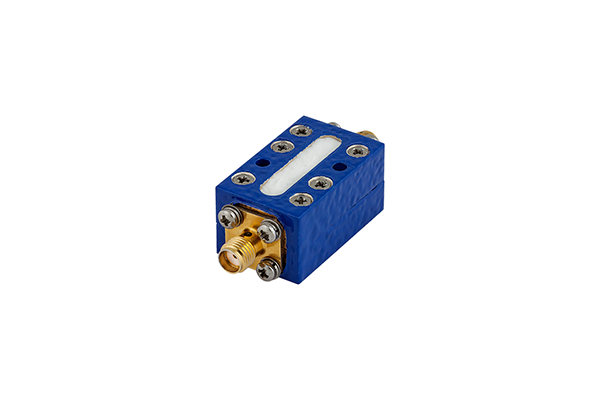

Mini-Circuits’ ZBSS-7975+ is a coaxial band pass filter with a passband from 7825 to 8125 MHz.  Fabricated with suspended-substrate-stripline circuit technology, this model has typical passband insertion loss of 2.5 dB and 50 dB stopband rejection from DC to 6900 MHz and from 9350 to 15000 MHz.  The filter is suitable for rejection of unwanted harmonic signal content in a transmitter and receiver applications including SatCom, mobile communications and more.  The filter handles input power levels up to 3W and is designed for operating temperatures from -40 to +85ºC.  It is supplied in a rugged coaxial package measuring 1.22 × 0.75 × 0.60 in. with SMA connectors
