Mini-Circuits’ Low Current MMIC Amplifier Covers DC to 20 GHz with Flat Gain

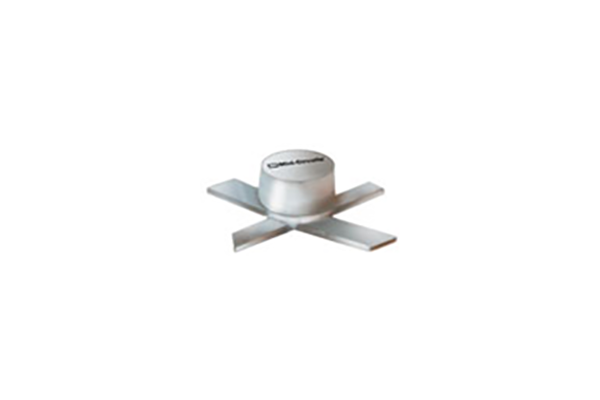

Mini-Circuits’ EHC-24L+ is a low-current, wideband gain block with an operating frequency range from DC to 20 GHz.  This model draws just 19.1mA of DC current and provides 13 dB typical gain with ±1.1 dB flatness up to 10 GHz and ±2.7 dB flatness up to 20 GHz.  The amplifier delivers P1dB of +6.8 dBm and output IP3 of +16.6 dBm at mid-band.  The unit comes housed in a tiny 4-lead ceramic package measuring just 0.07” (dia.) x 0.057” (h.)


לפרטים נוספים:

 MCDI | Tel – 077-540-6075 | Fax – 153-77-540-6051 | E-mail –
