Mini-Circuits’ 50W Surface-Mount 2-Way 90° Hybrid, 8 to 12 GHz

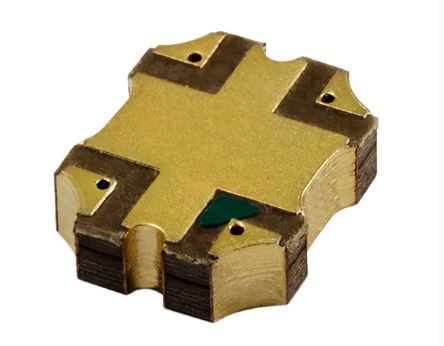

Mini-Circuits’ QCH-123+ is a high-power, surface-mount 2-way 90° hybrid capable of handling up to 50W RF input power for applications over a wide bandwidth from 8 to 12 GHz.  This model provides low insertion loss of 0.25 dB and 23 dB port-to-port isolation.  With 0.35 dB amplitude unbalance and 6° phase unbalance (relative to 90°), the hybrid produces nearly equal output signals with 90° phase shift, ideal for I/Q systems, balanced amplifiers, antenna feeds, and many more applications.  The splitter is designed in to a miniature printed laminate measuring only 0.25 x 0.2 x 0.069” with wraparound terminations for good solderability and easy visual inspection
