Mini-Circuits’ Solid State SP8T Absorptive Switch with SPI Control, 1 to 6000 MHz

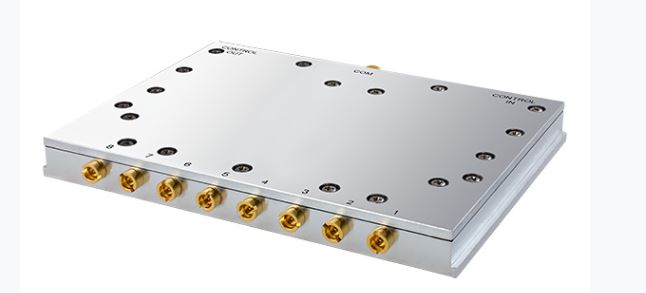

Mini-Circuits’ SPI-SP8T-6G is a solid state SP8T absorptive switch supporting a wide range of applications from 1 to 6000 MHz.  This model features control and power supply via a Hirose DF11 connector and is operated using a 3-wire SPI interface compatible with TTL and LVTTL voltages, allowing connection of up to 50 units in series to the same control line in “daisy chain” configuration.  The RF switch provides 80 dB isolation, fast switching time of just 6µs, and power handling up to +27 dBm.  It comes housed in a rugged, aluminum alloy case (3.68 x 3.27 x 0.40”) with SMP RF connectors.



לפרטים נוספים:

 MCDI | Tel – 077-540-6075 | Fax – 153-77-540-6051 | E-mail – office@mcdi-ltd.com
