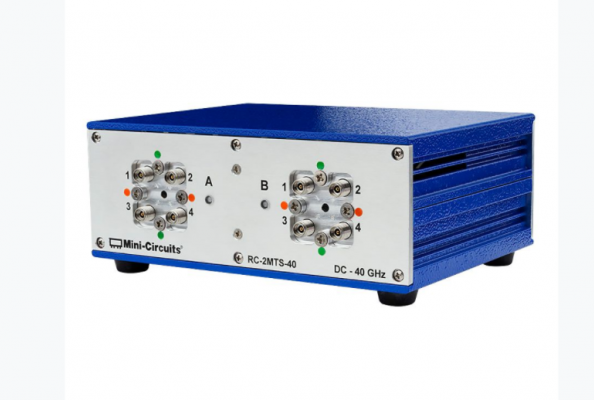

Mini-Circuits’ model RC-2MTS-40 mechanical transfer switch is designed to withstand better than 2 million switching operations in a laboratory or test setup. With low loss and high isolation from DC to 40 GHz, the 50-Ω
RoHS-compliant transfer switch simplifies programmed switching actions with both Ethernet and USB control ports. It features 25 ms switching speed and insertion loss of 0.15 dB to 12 GHz, 0.25 dB to 26 GHz, and 0.50 dB to 40 GHz. The isolation is typically 90 dB to 12 GHz, 85 dB to 26 GHz, and 70 dB to 40 GHz. The VSWR is typically 1.05:1 to 12 GHz, 1.20:1 to 26 GHz, and 1.50:1 to 40 GHz. The compact unit measures 4.5 × 6.0 × 2.25 in. (114.3 × 152.4 × 57.2 mm) and is supplied with 2.92-mm connectors. It is designed for operating temperatures from 0 to +40°C.
