Mini-Circuits’ Ultra-Wideband MMIC Directional Coupler Covers 6.0 to 26.5 GHz

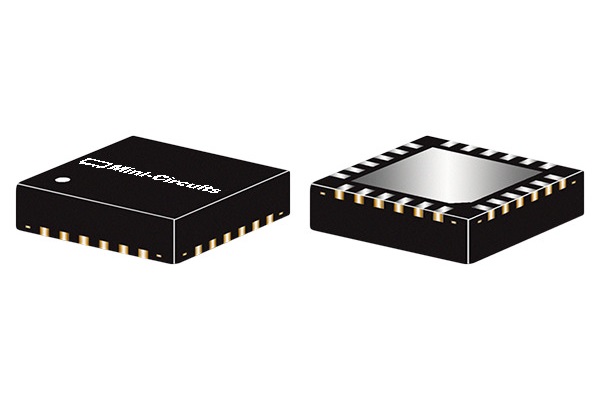

Mini-Circuits’ model EDC10-273+ is a surface-mount, GaAs MMIC directional coupler with a frequency range from 6.0 to 26.5 GHz. The 10 dB coupler offers typical coupling flatness of ±1.5 dB across the full frequency range. It has low mainline loss of typically 1.4 dB and maintains typical directivity of 15 dB through 18 GHz and 11 dB to 26.5 GHz. The typical input return loss is 24 dB to 10 GHz, 17 dB to 18 GHz, and 15 dB to 26.5 GHz. The typical output return loss is 22 dB to 10 GHz and 16 dB or better through 26.5 GHz. The typical coupled-port return loss is 24 dB to 10 GHz and 14 dB or better through 26.5 GHz. The miniature directional coupler is supplied in a 24-lead QFN package measuring just 4×4 mm
