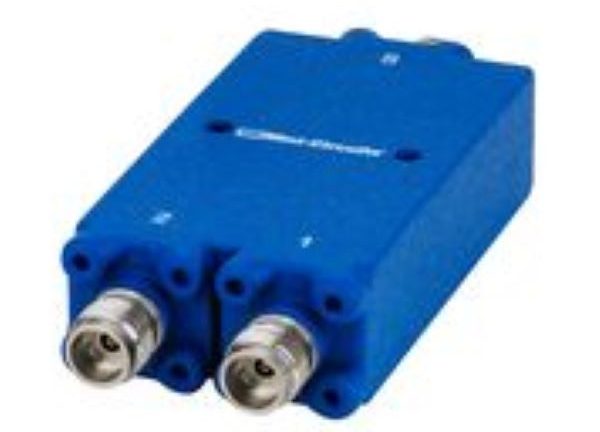

Mini-Circuits’ model ZC2PD-E2653+ is a two-way, DC-pass, 0-deg. coaxial power splitter/combiner with broad frequency range of 2 to 65 GHz. It can pass as much as 321 mA DC current and handle as much as 12 W power as a splitter. Insertion loss above the nominal 3-dB split is typically 0.6 dB from 2 to 18 GHz, 1.2 dB from 18 to 40 GHz, 1.6 dB from 40 to 50 GHz, and 2.1 dB from 50 to 65 GHz. Isolation between ports is typically 30 dB or better across the full frequency range. Typical amplitude unbalance between ports is 0.03 dB to 18 GHz, 0.07 dB to 50 GHz, and 0.10 dB to 65 GHz. Typical phase unbalance is 0.5 deg. to 18 GHz, 1.9 deg. to 50 GHz, and 2.6 deg. to 65 GHz. VSWR is typically 1.19:1 or better at all ports and frequencies. The RoHS-compatible splitter/combiner is a match for satcom, mobile communications, 5G base stations, and scientific research. It measures 1.04 × 1.79 × 0.5 in. (26.42 × 45.47 × 12.70 mm) with female 1.85-mm connectors and has an operating temperature range of -55 to +100°C.
