Mini-Circuits’ Flexible Cables Make Tight Bends to 40 GHz

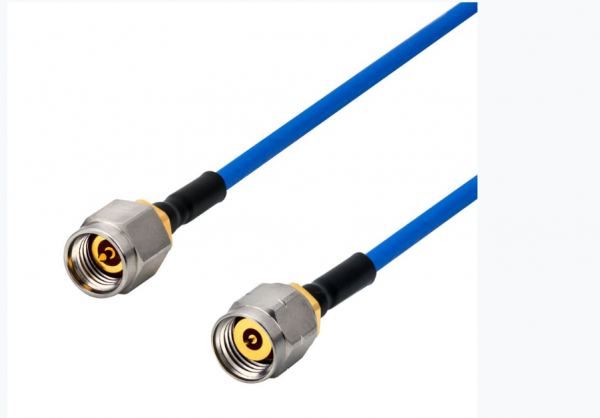

Mini-Circuits’ FL86 Series 50-Ω flexible coaxial cables deliver outstanding electrical performance from DC to 40 GHz even when bent into the tightest places. These flexible cable assemblies combine a silver-plated copper-clad steel center conductor with a tin-soaked copper braid outer shield and PTFE dielectric for minimal signal leakage. Connectors have passivated stainless-steel coupling nut over a gold-plated connector body with gold-plated brass center conductor; the connector interface meets MIL-STD-348 requirements. The cable assemblies are available in a variety of lengths. As an example, model FL86-12KMVM+ has a 12-in. length with 2.92-mm male input and output connectors. It is hand-formable to tight 6-mm static bend radius and 20-mm dynamic bend radius without need for special cable-bending tools. A good fit for commercial communications, military/aerospace systems, and test and measurement applications, this 12-in. cable assembly provides typical return loss of 28 dB at 18 GHz and 21 dB at 40 GHz. It can handle RF/microwave power levels of typically 99 W at 2 GHz, 33 W at 18 GHz, and 12 W at 40 GHz at operating temperatures from -55 to +100°C.

https://www.mcdi-ltd.com/mc_items/fl86-12kmvm/

לפרטים נוספים: . MCDI Ltd
ט: 077-540-6075
פ: 153-77-540-6051
office@mcdi-ltd.com
www.minicircuits.com
