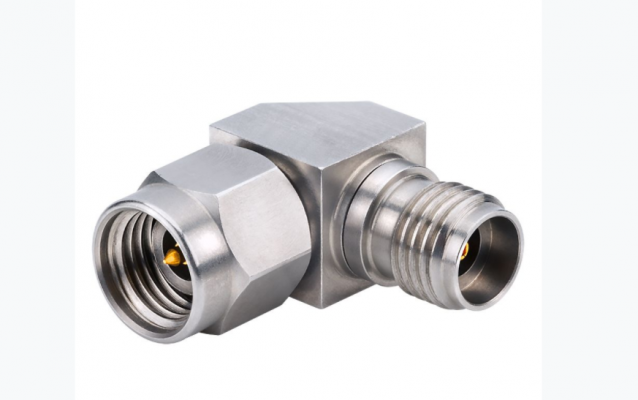

Mini-Circuits’ model KMR-KM50+ is a right-angle 2.92-mm to 2.92-mm adapter with 2.92-mm coaxial connectors and low insertion loss of typically 0.13 dB from DC to 40 GHz. The typical VSWR for the 50-Ω adapter is 1.06:1 to 20 GHz and typically 1.15:1 from DC to 40 GHz. The RoHS-compliant adapter, which can interface with SMA connectors, features passivated stainless-steel construction with gold-plated beryllium-copper center conductor for long-lifetime operation. It has outside dimensions of 0.673 × 0.520 × 0.543 in. (17.10 × 13.20 × 13.80 mm).
https://www.mcdi-ltd.com/mc_items/kmr-km50/
