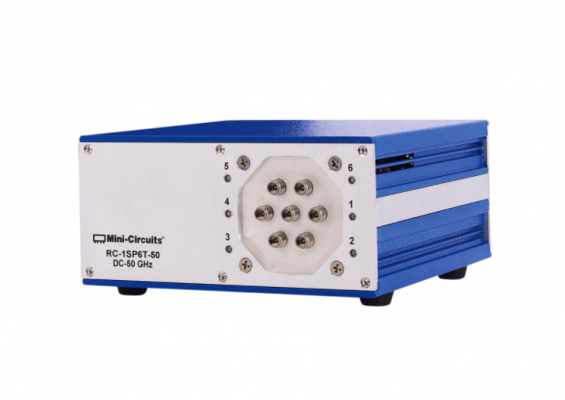

Mini-Circuits’ model RC-1SP6T-50 is an electromechanical single-pole, six-throw (SP6T) switch matrix with wide bandwidth of DC to 50 GHz. Well suited for automated-test-equipment (ATE) and system applications, the RoHS-compliant switch features a break-before-make configuration to prevent accidental connections. The switch, which can be controlled by USB or Ethernet interface, maintains low insertion loss across the wide frequency range, typically 0.2 dB from DC to 18 GHz, 0.3 dB from 18 to 40 GHz, and 0.4 dB from 40 to 50 GHz. Isolation between ports is typically 60 dB from DC to 18 GHz and 50 dB or more from 18 to 50 GHz. The switch is well matched to 50 Ω, with typical VSWR of 1.20:1 from DC to 18 GHz, 1.30:1 from 18.0 to 26.5 GHz, and 1.60:1 from 26.5 to 50.0 GHz. The SP6T switch matrix measures 6.00 × 5.50 × 2.75 in. (152.40 × 139.70 × 69.85 mm) with female 2.4-mm RF connectors. It is designed for typical cold switching power of 20 W to 18.0 GHz, 10 W to 26.5 GHz, and 3 W to 50 GHz and built for high reliability, rated for 2 million typical switching cycles.
